GSSI StructuralMini concrete scanner

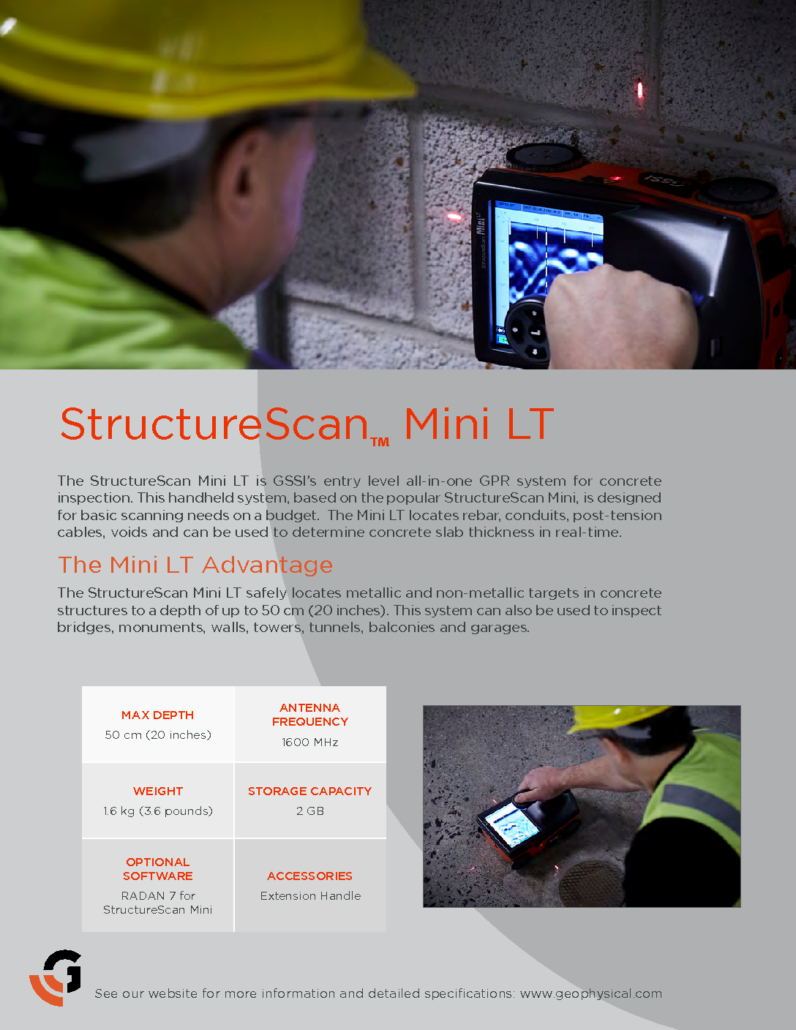

StructureScan Mini LT
Entry Level GPR System for Concrete Inspection
The StructureScan™ Mini is GSSI’s all-in-one GPR system for concrete inspection. This handheld system locates rebar, conduits, post-tension cables, voids and can be used to determine concrete slab thickness in real-time.
- Max Depth: 50cm (20 in)
-
Antenna Frequency 1600 MHz
-
Weight 1.6Kg (3.6lbs)
-
Storage Capacity 2G
-
Optional Software Radan 7 Structurescan mini
-
Accessories Extension Pole

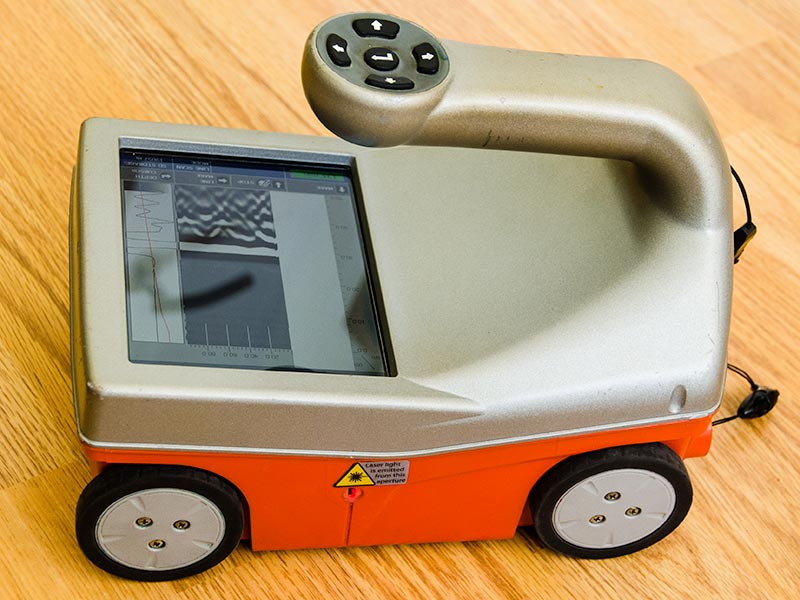

Concrete Scanning Made EasyThe StructureScan Mini LT is compact and lightweight – weighing only 1.6 kg (3.6 lbs.), making it easy to use on the ground or for above-the-head survey locations.
Enhanced Data VisualizationThe StructureScan Mini includes two modes of operation; 2D mode for real-time locating, and 3D mode for x-ray like images of the concrete. This system also incorporates two types of automatic target detection to aid users in interpreting data.
First-in-Class CapabilitiesIncorporated into the design is an integrated laser positioning system, located on the front and sides of the unit to help users accurately mark targets. It also provides four-wheel drive to ensure efficient and accurate data collection.
